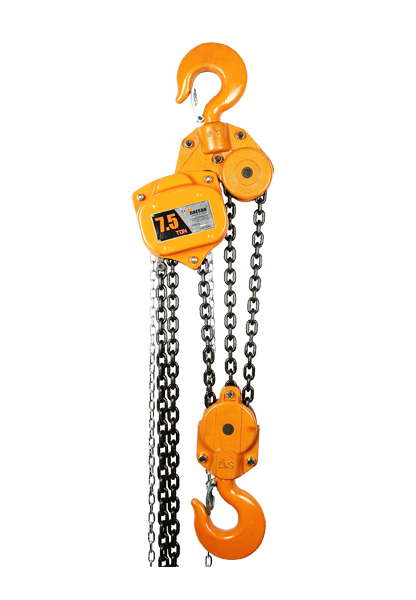

DSN
- Removable wheel and brake covers
- Mechanical load brake
- 360 degree rotating drop-forged steel hooks
- Chain guide for smooth operation
- Precise-fitting load sheaves
- Strong and wear resistant load chain

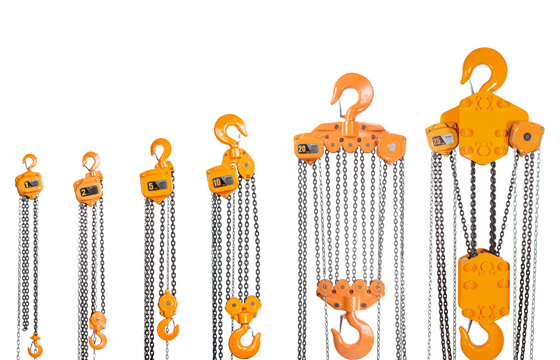

- Various tonnages available
- From 0.5 ton low tonnage to 40 ton high tonnage,
users can select according to needs.
(For detailed specifications, please refer to the
'Product Catalog' under 'Product Related Data'
at the bottom)

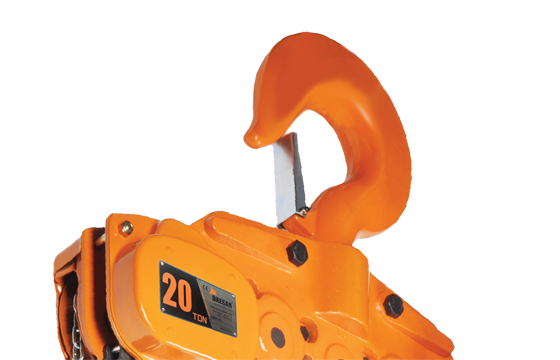

- 360 degree rotating hook
- Top and bottom 360-degree rotating hooks
are applied to increase work safety and convenience.

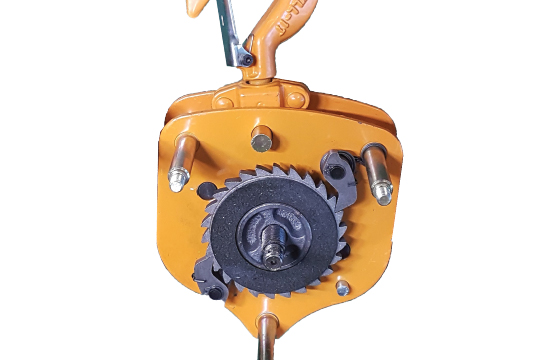

- brake system
- Stability is maximized with Double Pawl brake system.

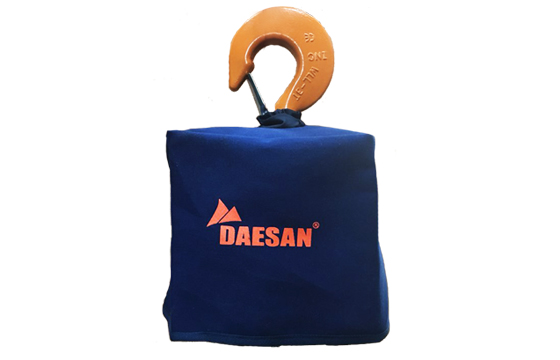

- Weather cover (optional)
- The weather cover protects the chain block
body from foreign substances and prevents
corrosion, thereby extending the
chain block service life.

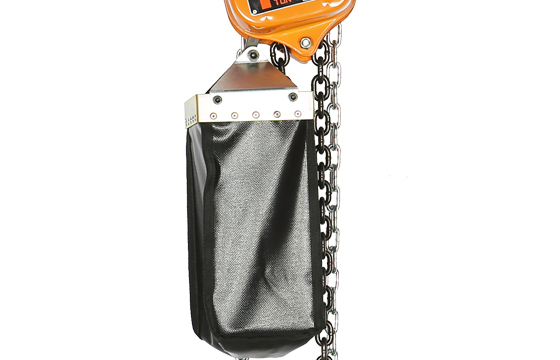

- Chain box for load chain (optional)
- It prevents the load chain of the chain block from
sagging and protects the chain
from foreign substances.
-
01

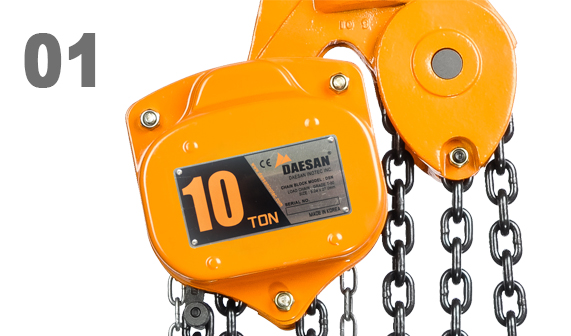

- Covers
- Protective steel covers can easily be removed for inspection and maintenance. Wheel cover & brake cover protect block from dust and rain.
-
02

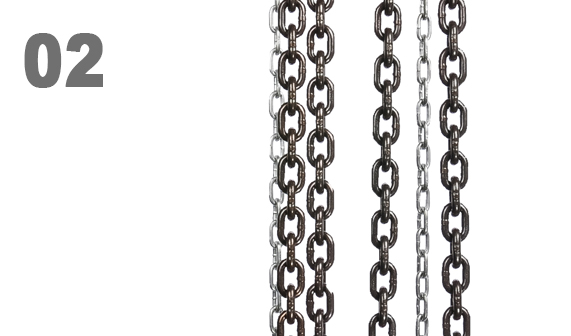

- Load Chain
- Electric welded G80 alloy steel chain is heat treated for wear resistance and strength. Accurately and uniformly sized to seat properly in load sheaves.
-

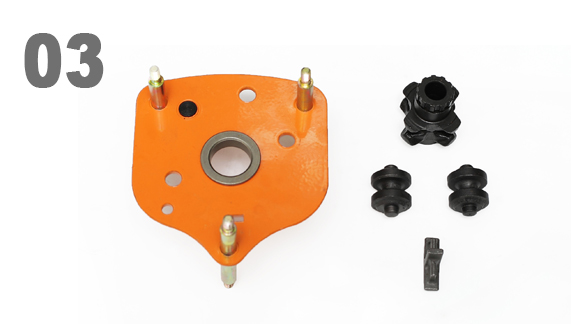

03
- Chain Guide
- Allows smooth operation of load chain.
-

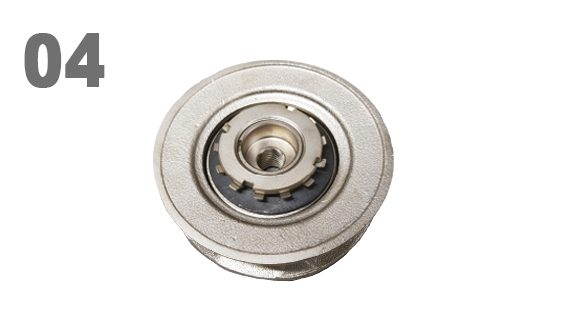

04
- Overload protection device(optional)
- It is installed inside the chain block and act as a safety device that prevents overload operation
Product specification
| Name | Chain Block |
|---|---|
| Model | DSN |
| Production items | 0.5t,1t,1.5t,2t,3t,5t,7.5t,10t,15t,20t,25t,30t,40t |
| Options | • Overload protection by slip clutch system • Chain box for load chain • Hoist body weather cover • Electroless nickel plated load chain • Chain extension optional (Load chain, Hand chain) |
| Product Features | • Covers : Protective steel covers can easily be removed for inspection and maintenance. Wheel cover & brake cover protect block from dust and rain. • Mechanical Load Brake : Can hold a capacity load stationary at any position. • Hooks : All hooks are drop forged, heat treated steel with spring type latches. Both hook rotated 360 for easy rigging. • Load Chain : Electric welded G80 alloy steel chain is heat treated for wear resistance and strength. Accurately and uniformly sized to seat properly in load sheaves.
|
|---|
Product Video

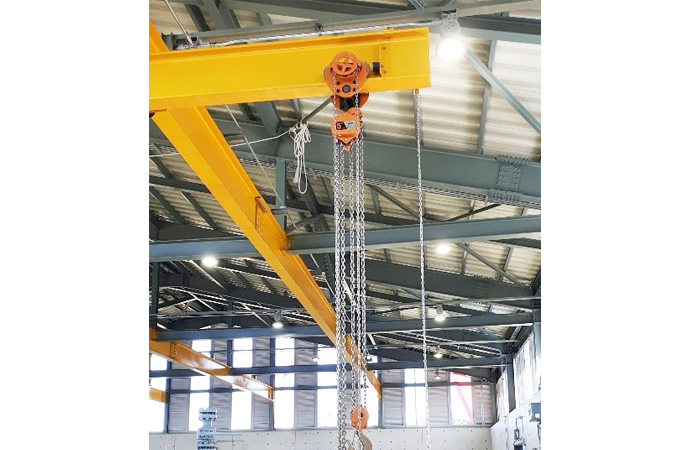

Product installation example
